Ook 4th Axis Plus

CAD drawing of 4th Axis Model
  • Haas or 5th axis vise included
  • Mounts directly to 4th axis
  • Secures to 96mm locking plate
  • Master centering gage supplied with fixture
  • Accuracy .001
  • Repeatability .001

CAD Drawings

Side View
CAD drawing of 4th Axis Model
Front View
CAD drawing of 4th Axis Model
Top View
CAD drawing of 4th Axis Model

Photos

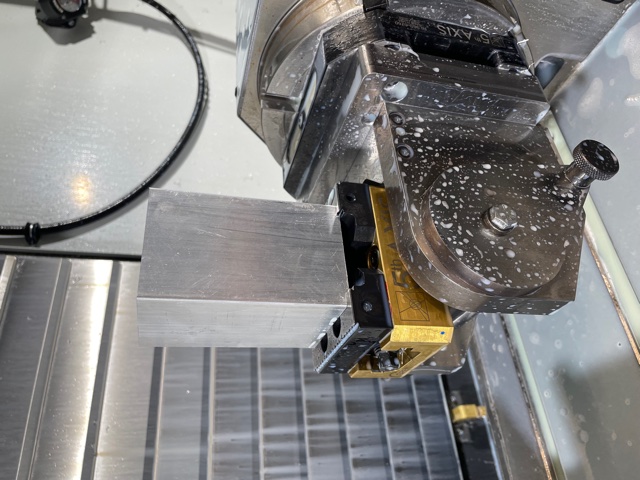

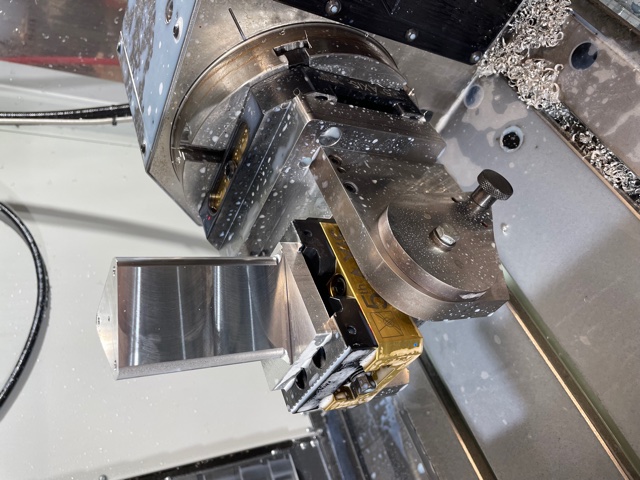

Sample Picture

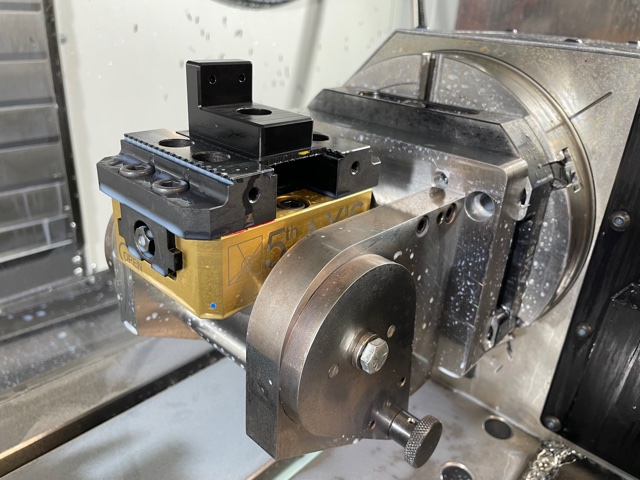

Sample Picture

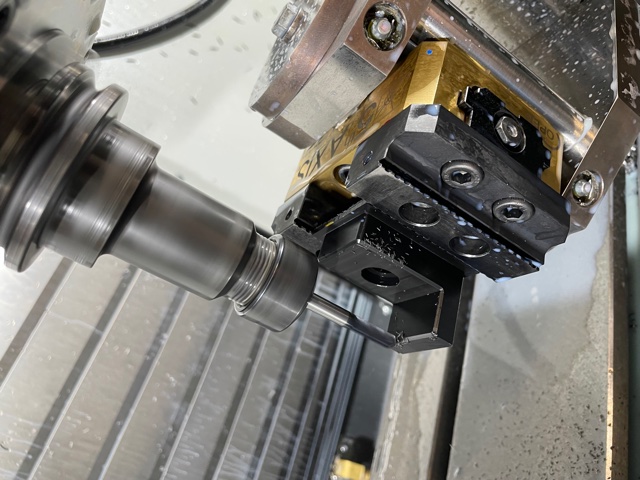

Sample Picture

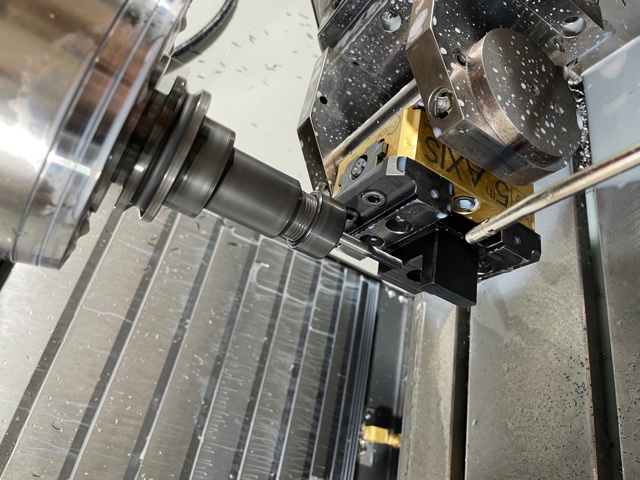

Sample Picture

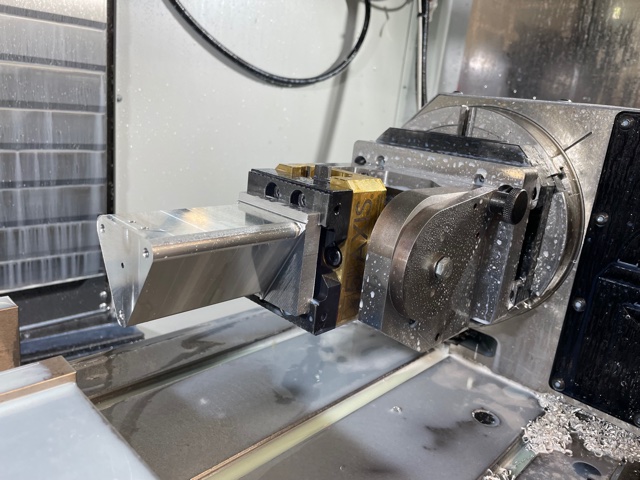

Sample Picture

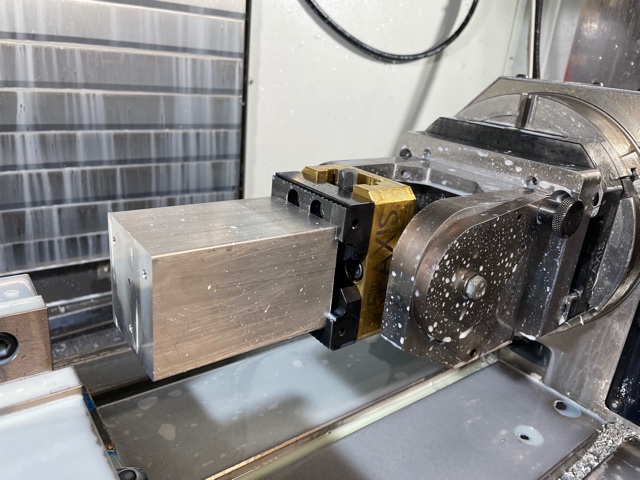

Sample Picture

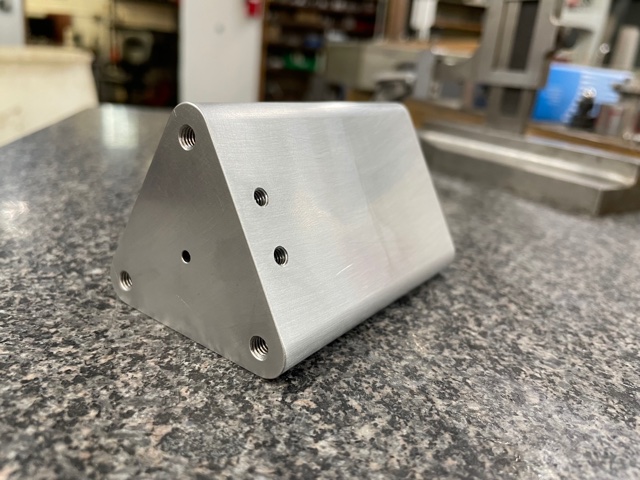

Sample Picture

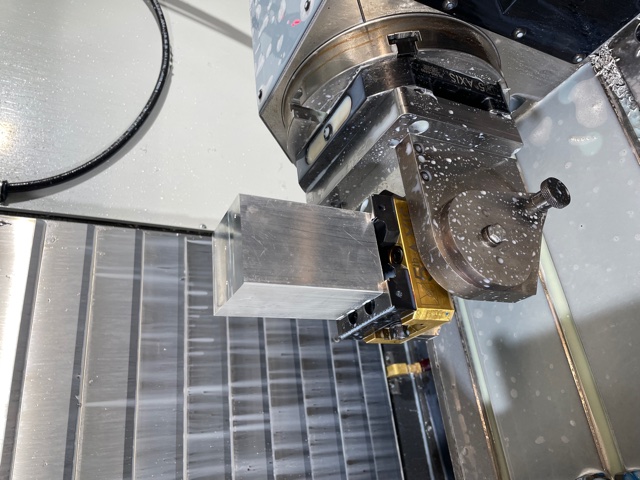

Sample Picture
